50 to 30-amp hookup dangers
Is voltage detected in extension cord with a NCVT dangerous?
Hey Mike,

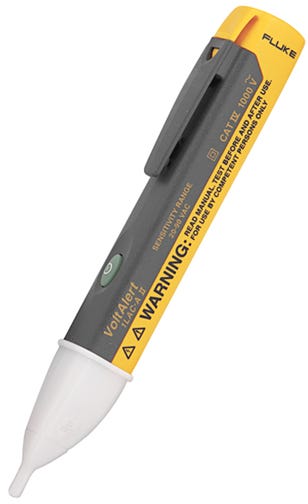

I have enjoyed your J.A.M. articles over the past couple of years and found them to be very informative and helpful. I was quite interested in your 'hot skin' video, purchased a Fluke voltage detector and tested my Lance 2465 travel trailer. Fortunately, there was no evidence of a 'hot skin' condition on any -metal in the RV or stairs, but to my surprise the extension cords and adapters detected voltage!Â
The extensions are connected as follows: 50-amp outlet to a Watchdog surge protector to a 50/30amp adapter to a 30-amp 50' cord to a 30/50-amp adapter to the RV 50-amp cord. Voltage was detected on the 30-amp extension cord, both adapters, RV 50-amp cord and screw at the point of connection to the RV.
Is this condition caused by dropping from 50 to 30 and back to 50-amp? Is this a condition to be concerned about?
Thank you, - Charlie K
Charlie,
Actually, that’s exactly how all Non-Contact Voltage Testers are supposed to work. Yes, they will detect a voltage when pointed at an extension cord as you describe. I’m the guy who figured out you could use a NCVT to discover a hot-skin voltage, but the outlet and extension cord testing is what they were designed to do. Here’s a video of me demonstrating a dual-range Southwire NCVT which I really like.
Danger, Will Robinson
However, if I’m reading your connection description properly, by inserting a 30-amp extension cord in the middle of the run between a 50-amp outlet on the pedestal and the 50-amp inlet on your RV, you’ve created a very dangerous fire hazard. There’s nothing to stop you from exceeding 30-amps of total current draw in your RV, and the pedestal will happily supply more than 30 amps without tripping the 50-amp circuit breaker. So you could easily pull more than 30-amps of current in that 30-amp cord which could start a fire in that extension cord or one of the 30/50 or 50/30-amp adapters.
I’ve also had a few readers who stepped a 50-amp pedestal outlet down to a 15-amp extension cord, then stepped it back up to a 50-amp RV inlet. That’s WAY more dangerous since a 15-amp extension cord with just 30-amps of current can easily reach the boiling point of water in 5 minutes. Here’s a video I made a while ago demonstration this.
If you did have a fire, and an inspector (and your insurance company) looked at the connection, they might refuse to honor a claim.
Please let me know if I’m misreading your description, but if not then I recommend you plug into a 30-amp pedestal outlet, or use a 50-amp extension cord (yes, I know they’re heavy).
Let’s play safe out there - Mike
Mike,
I use a setup much like Charlie, but only use it when I am NOT using our Air Conditioners or other major appliances. We have a residential refrigerator, so I have to have power to it all the time to keep food from spoiling. If we park our 5th wheel in a driveway, or someone's yard while visiting, sometimes the only outlet available to me is a 110. I plug a heavy duty extension cord into the 110 outlet, then plug my 50amp into that with an adapter. The only appliance using the power in our RV is the refrigerator, so I felt that I was ok. Am I not?
- Jef Boutin
